The application
Indoor central air conditioner outdoor fan and other ventilation equipment.
Product features
Wide speed range, strong overload ability, high reliability, good stability
Excellent torque characteristic, good torque performance in middle & low speed, large starting torque, small starting current
Reasonable structure, high efficiency, low temperature rise, low noise, small virbation
The internal circuit set
Closed loop setting; switch combination 1,3,5,9, connecting with switch accumulate and multiply by 1000, that is the max closed-loop RPM.
Hall model or not setting: connecting with switch W to run Hall brushless motor, otherwise run no hall brushless motor
Planetary Gear BLDC Fan Motor , High Rpm Brushless Motor For Fan Coil Unit
Technical Parameters:
| Name | BLDC motor(motor, power supply, driver) |
| Shaft type | single shaft/double shaft |
| Shaft diameter | Φ12, Φ12.7, Φ14 |
| Output power | 30W |
| 60W | |
| 90W | |
| 120W | |
| 150W | |
| 180W | |
| Input voltage | AC220V ±10% |
| Speed control | 300~1500RPM variable speed |
| 3 speed | |
| Insulation class | B/F |

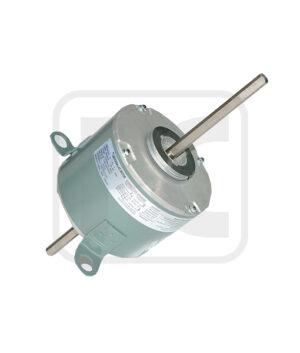

Universal Air Conditioner Fan Motor / Air Condenser Fan Motor 220V 1/4 HP
Motor Specification
1. Voltage : 208 – 230V
2. Frequency : 60Hz
3. Power : 1 / 6Hp
4. Speed : 1075RPM
5. Cap : 5 / 370
Motor Feature
1. Use NSK low noise high quality rolling bearing.
2. Small vibration,high efficiency .
3. Low temperature ,small vibration.
4. Advanced manufacturing equipment, skilled craftwork, high level of automatization, high quality insurance.
Motor Application
Window machine and fresh air ventilation system.
Product befits:
1. The motor have low Noise,reasona structure,high efficiency.
2. Steady quatlity.
3. Insulation class E/B/F,protection class IP00-IP54.
4. Large Wind Amount.
5. Providing Imported equipment & technical assistance.
6. Low temperature rise and a strong adaptability to the environment.
7. 100% pure copper, aluminum motor can also be available if customer need large quantity.
