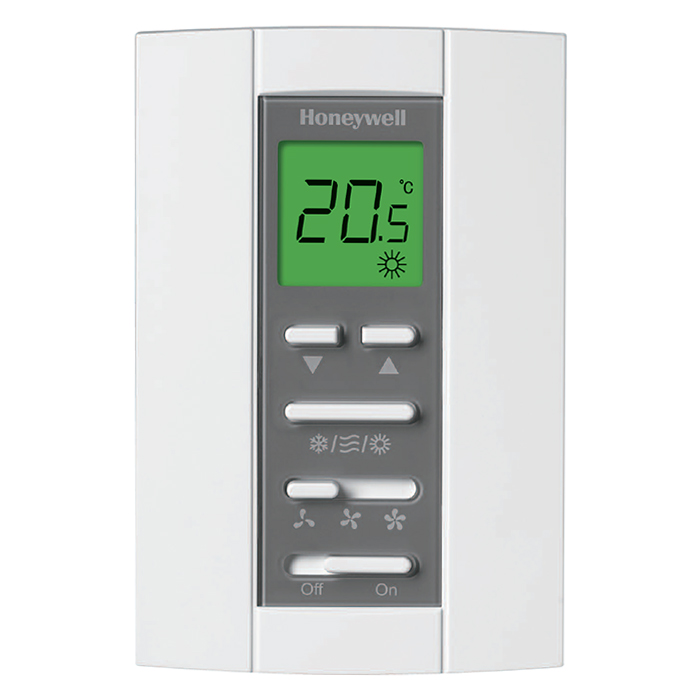

Thermostat Honeywell T6812DP08 APPLICATION T6811/6812 digital thermostats are designed for application of 3-speed fans and valves in 2-pipe fan coil systems. The T6811/6812 work for the following applications: — 2-pipe cool only — 2-pipe heat only — 2-pipe heat/cool manual changeover — Ventilation mode — Manual 3-speed fan control — Water valve control
FEATURES
• Sleek modern design, suitable for office, hotel and
residential buildings
• Large LCD display with English and icon display
• Easy to install and set-up
• Selectable room temperature or setpoint display
• Manual fan speed selection
• Adjustment of display room temperature
• Temperature display in either °C or °F
• Permanent memory retention
• Keypad Lockout
• Heat and cool range stops for energy savings
|
CODE
|
WARM-IN °C
|
WARM-OUT °C
|
COLD-IN °C
|
COLD-OUT °C
|
|
VT9(K59-L1102)
|
+3.5
|
-11
|
+3.5
|
-26
|
|
VC1(K50-P1125)
|
+8
|
|
-9
|
-18
|
|
VS5(K54-P1102)
|
-12 (signal cut-in 5°C above cut-in)
|
|
|
-34
|
|
K50-P1110
|
+2
|
|
-14.5
|
-23
|
|
K50-P1179
|
-2
|
-9.5
|
-11
|
-19.5
|
|
K50-P1127
|
+12.5
|
|
+5
|
+1.5
|
|
K50-P1126
|
-9.5
|
|
-18
|
-24.5
|
|
K50-P1174
|
+3.5
|
|
-4.5
|
-18
|
|
K50-P1117
|
-12
|
|
|
-34
|
|
K50-P1118
|
+12.5
|
|
+2
|
-3
|
|
K59-P1609
|
+3.5
|
-11
|
+3.5
|
-22
|
|
K54-P1140
|
-4.5 (signal cut-in 5°C above cut-in)
|
-11
|
-17
|
-23
|
We deals in all types of thermostats for Fridge, Freezers, Refrigerators & Window Air Conditioner in Dubai. Importer & Wholesaler of All kind of Refrigeration & Air Conditioning Spare Parts.
The TF428 series digital thermostat is designed for 3-speed
fan and valve control in a fan coil system, including:
– 2-pipe cool only/heat only/manual changeover
– 4-pipe cool/heat manual /automatic changeover
– Ventilation mode
– Manual or automatic 3-speed fan control
– Water valve control
Besides the basic controls, TF428 series featuring CPH
(Cycle Per Hour) better maintains the room temperature to
the setpoint and Random Start-up Function would help to
maintain power grid stability.
In addition, Honeywell Memorized Time Off Function can
automatically turn off the thermostat to save energy.
We deals in all types of thermostats for Fridge, Freezers, Refrigerators & Window Air Conditioner in Dubai. Importer & Wholesaler of All kind of Refrigeration & Air Conditioning Spare Parts.
Technical Specifications: Working Voltage: AC24V ± 10%, 50/60Hz Max Resistive Current: <5A Power Self-Consumption: <1.5W Temperature Accuracy: ±1°C Timing Error: <1% Output Rated Power: <200W Temperature Setup Range 5°C ~ 35°C
